Panel Options

Below are 3 of our most common panels.  We have more custom options available upon request.

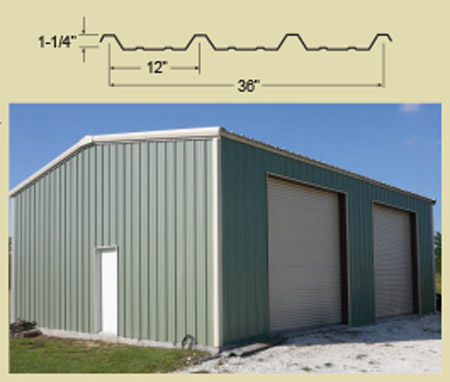

R-Panel/PBR-Panel

  • Exposed direct-fastened panel for roof and wall application
  • 36″ panel coverage
  • Trapezoidal rib on 12″ centers
  • 1-1/4″ rib height
  • Gauges: 26ga and 24ga standard
  • Applies over open framing or solid substructure

Testing

  • UL 2218, Class 4 Impact Resistance
  • UL 790, Class A Fire Resistance Rating
  • Texas Windstorm Evaluation RC-198

*Stock Sheets – R – Panel 8′, 10′, 12′, 14′, 16′, 18′, 21′ – available in polar white, light stone, and galvalume

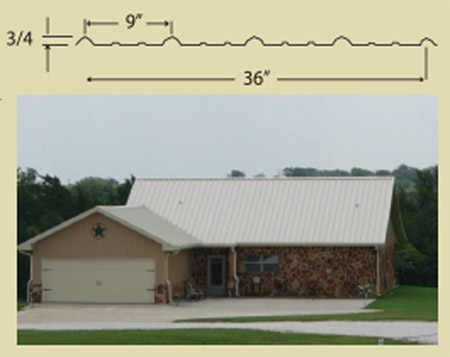

Classic Rib Panel

  • Exposed direct-fastened panel for roof and wall application
  • 36″ panel coverage
  • Trapezoidal rib on 9″ centers
  • 3/4″ belltop rib height
  • Gauges: 29ga and 26ga standard
  • Applies over open framing or solid substructure

Testing

  • UL 2218, Class 4 Impact Resistance
  • UL 790, Class A Fire Resistance Rating
  • Texas Windstorm Evaluation RC -198

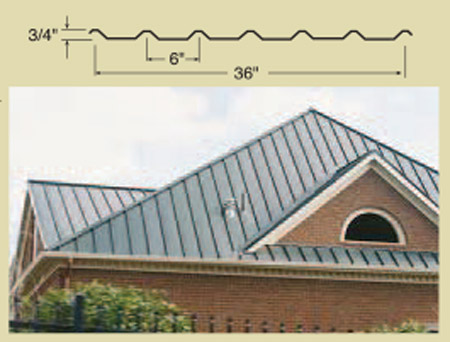

U-Panel/PBU Panel

  • Exposed direct-fastened panel for roof and wall application
  • 36″ panel coverage
  • Trapezoidal rib on 6″ centers
  • 3/4″ rib height
  • Gauges: 26ga and 24ga standard
  • Applies over open framing or solid substructure

Testing

  • UL 2218, Class 4 Impact Resistance
  • UL 790, Class A Fire Resistance Rating
  • Texas Windstorm Evaluation RC-198
