Panel Options

Below are several of our most popular roof panels.  If you have any questions or would like to see some different profile panels, give us a call.

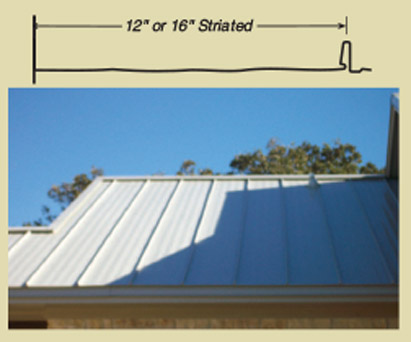

Image II

• Architectural concealed direct-fastened roof panel
• 12″ or 16″ panel coverage
• 1″ rib height
• Gauges: 26ga standard
• Applies over solid substructure with 30# felt underlayment

Testing

• UL 2218, Class 4 Impact Resistance
• UL 790, Class A Fire Resistance Rating
• Texas Windstorm Evaluation RC-198



---

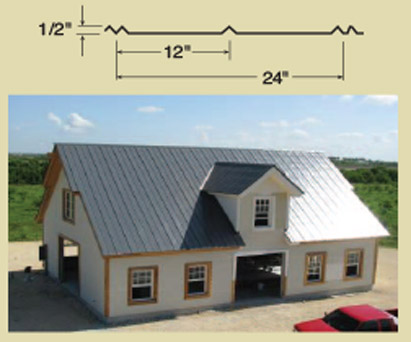

5V-Crimp

• Exposed direct-fastened roof panel, traditional “V” rib
• 24″ panel coverage
• 1/2″ rib height
• Gauges: 29ga and 26ga standard
• Applies over solid substructure with 30# felt underlayment

Testing

• UL 2218, Class 4 Impact Resistance
• UL 790, Class A Fire Resistance Rating
• Texas Windstorm Evaluation RB-198



---

1/2″ Corrugated

• Exposed direct-fastened for roof and wall panel
• 32″ panel coverage
• 1/2″ rib height
• Gauges: 26ga, 24ga, 22ga, and 20ga standard
• Applies over open framing solid substructure

Testing

• UL 2218, Class 4 Impact Resistance
• UL 790, Class A Fire Resistance Rating
• Texas Windstorm Evaluation RC-198
